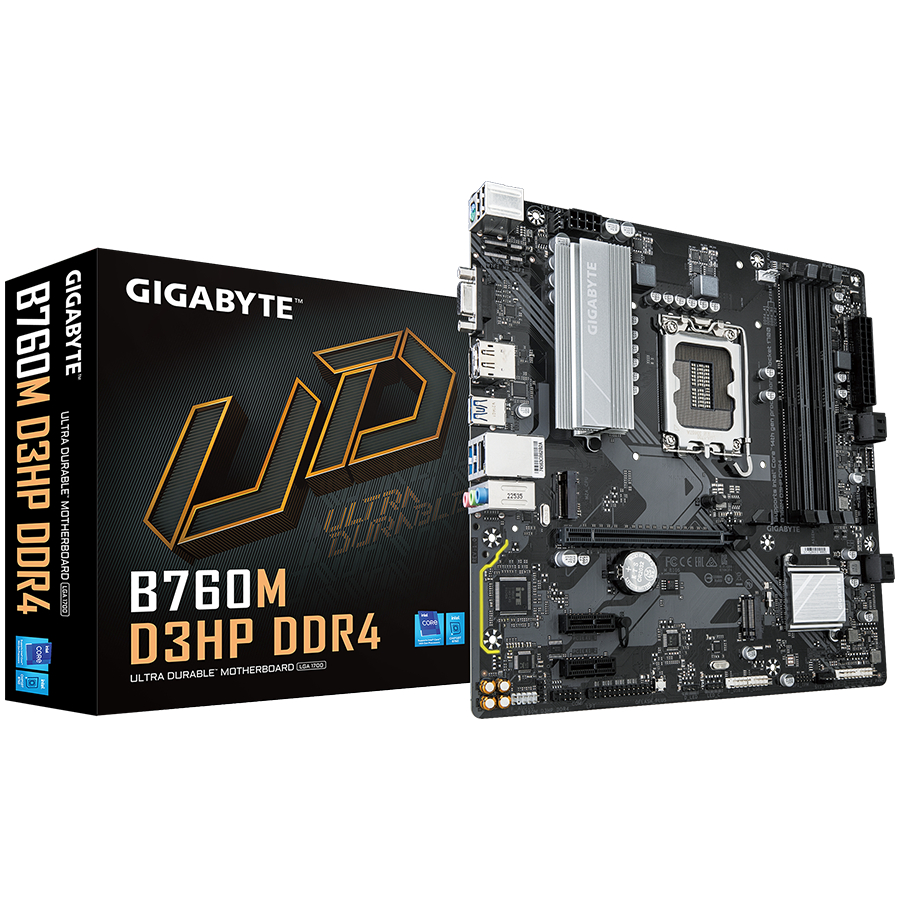

GIGABYTE MB B760M D3HP DDR4 (LGA1700, 4x DDR4 128GB, 1x PCI-E 4.0 x16x16, 2x PCI-E 3.0 x1x1, 2x M.2 PCIe 4.0, 4x SATA, 2x USB 2.0, 1x DP, 1x HDMI, GbE LAN, mATX, Retail)

Jamstvo : 36 mjeseci , Chipset: Intel B760
Supports Central Processor Unit: Intel 12th Gen Processors
Intel 13th Gen Processors
Intel 14th Gen Processors
CPU podnožje: Socket 1700
CPU Maximum Quantity Supports: 1
Vrsta memorije: DDR4 SDRAM
Memory Form Factor: DIMM 288-pin
Memory Speed: 2133MHz(PC4-17000)
2400MHz(PC4-19200)
2666MHz(PC4-21300)
2933MHz(PC4-23400)
3000MHz(PC4-24000)
3200MHz(PC4-25600)
Maximum Installable System Memory Storage Capacity: 128 GB
Memory Slot Total Quantity: 4
Provides Error Checking Method: non-ECC
Memory Features: Two DDR Channels
Unbuffered
Dual Rank
Single Rank
XMP
Integrated: Storage Controller:
PCI Express 4.0 x4 (2 x M.2 (Key M))
Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
SATA III-600 (4)
Video Controller Integrated: yes
Audio Integrated: yes
Device Location: Integrated
Audio Output Mode: 7.1 Channel Surround
Compliant Audio Standards: High Definition Audio
LAN Integrated: yes
Data Link Protocol Supports: Gigabit Ethernet/Fast Ethernet/Ethernet
PCI Express 4.0 x16: 1
PCI Express 3.0 x1: 2
USB 2.0: 2 (USB 2.0 (type A))
PS/2: 1
VGA: 1 (15-pin D-sub)
DisplayPort: 1
HDMI: 1 (HDMI (Type A))
USB 3.2 Gen 1: 3 (USB 3.2 (type A))
LAN: 1 (RJ-45)
Audio Interface: 3 (3.5-mm minijack)
BIOS Features: Gigabyte Q-Flash
WfM 2.0 Support
PnP 1.0a Support
SMBIOS 2.7 Support
128 Mb Flash ROM
DMI 2.7 Support
ACPI 5.0 Support
Hardware Monitoring: CPU Temperature
CPU Voltage
System Temperature
System Voltage
Power Connectors Type: 24+8 pin
Mainboard Features: Fan Speed Control
Software Included: Norton Internet Security (OEM version)
Supported Operating System: Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit
Form Factor: Micro ATX
Height (mm): 244 mm
Width (mm): 244 mm
Warranty Products Returnable: Yes
Warranty Term (month): 36 month(s)
Warranty validation Criteria: Serial Number
Pack Weight Brutto (kg): 0.96 kg
Pack Weight Netto (kg): 0.966 kg
Pieces in pack: 1
Box Weight Brutto (kg): 7.72 kg
Retail Packaging Net Weight Carton: 0.01 kg
Retail Packaging Net Weight Plastic: 0.01 kg
Packs in Box: 8
Package Type: Retail
EAN Code: 4719331862848
