Jamstvo : 36 mjeseci , – Faster AC Wi-Fi—AC1200 dual-band is ideal for HD video streaming and high-speed downloading.*
– Far-Reaching Coverage—4× antennas and Beamforming delivers extensive Wi-Fi coverage and reliable connections.
– Multi-Mode 3-in-1—Supports Router, Access Point, and Range Extender modes for added flexibility.
– Parental Controls—Manages when and how connected devices can access the internet.
– Guest Network—Provides separate access for guests in order to secure the host network.
– Smooth HD Streaming—Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming.
– IPv6 Supported—Compatible with the IPv6 (the latest Internet Protocol version 6).
– Compact and Mountable—Designed to conserve space and complement any décor.
– Standards: Wi-Fi 5
* IEEE 802.11ac/n/a 5 GHz
* IEEE 802.11n/b/g 2.4 GHz
– WiFi Speeds: AC1200
– 5 GHz: 867 Mbps (802.11ac)
– 2.4 GHz: 300 Mbps (802.11n)
– WiFi Range: 3 Bedroom Houses
* 4× Fixed Antennas: Multiple antennas form a signal-boosting array to cover more directions and large areas
* Beamforming: Concentrates wireless signal strength towards clients to expand WiFi range
– WiFi Capacity: Medium
* Dual-Band: Allocate devices to different bands for optimal performance
* MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients
– Working Modes:
* Router Mode
* Access Point Mode
* Range Extender Mode
HARDWARE
– Processor: Single-Core CPU
– Ethernet Ports:
* 1× 10/100 Mbps WAN Port
* 4× 10/100 Mbps LAN Ports
– Buttons: WPS/Reset Button
– Power: 9 V 0.85 A
SECURITY
– WiFi Encryption:
* WPA
* WPA2
* WPA3
* WPA/WPA2-Enterprise (802.1x)
– Network Security:
* SPI Firewall
* Access Control
* IP & MAC Binding
* Application Layer Gateway
– Guest Network:
* 1× 5 GHz Guest Network
* 1× 2.4 GHz Guest Network
SOFTWARE
– Protocols:
* IPv4
* IPv6
– Parental Controls
* URL Filtering
* Time Controls
– WAN Types:
* Dynamic IP
* Static IP
* PPPoE
* PPTP
* L2TP
– Quality of Service: QoS by Device
– NAT Forwarding:
* Port Forwarding
* Port Triggering
* DMZ
* UPnP
– IPTV:
* IGMP Proxy
* IGMP Snooping
* Bridge
* Tag VLAN
– DHCP:
* Address Reservation
* DHCP Client List
* Server
– DDNS:
* NO-IP
* DynDNS
– Management:
* Tether App
* Webpage
* Check Web Emulator>
OTHER
– System Requirements:
* Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
* Cable or DSL Modem (if needed)
* Subscription with an internet service provider (for internet access)
– Certifications: FCC, CE, RoHS
– Environment: Operating Temperature: 0 C~40 C (32 F ~104 F)
– Storage Temperature: -40 C~60 C (-40 F ~140 F)
– Operating Humidity: 10%~90% non-condensing
– Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power
– CE EIRP:
<20dBm(2.4GHz)
<23dBm(5GHz)
- FCC:
<30dBm(2.4GHz & 5GHz)
WiFi Reception Sensitivity
- 5GHz:
11a 6Mbps:-93dBm;
11a 54Mbps:-78dBm;
11ac HT20 mcs8:69dBm;
11ac HT40 mcs9:-66dBm;
11ac HT80 mcs9:-62dBm;
- 2.4GHz:
11g 54Mbps:-78dBm;
11n HT20 mcs7:-74dBm;
11n HT40 mcs7:-71dbm;
PHYSICAL
- Dimensions (W×D×H): 4.5 × 4.2 × 1.0 in (115 × 106.7 × 24.3 mm)
Package Contents

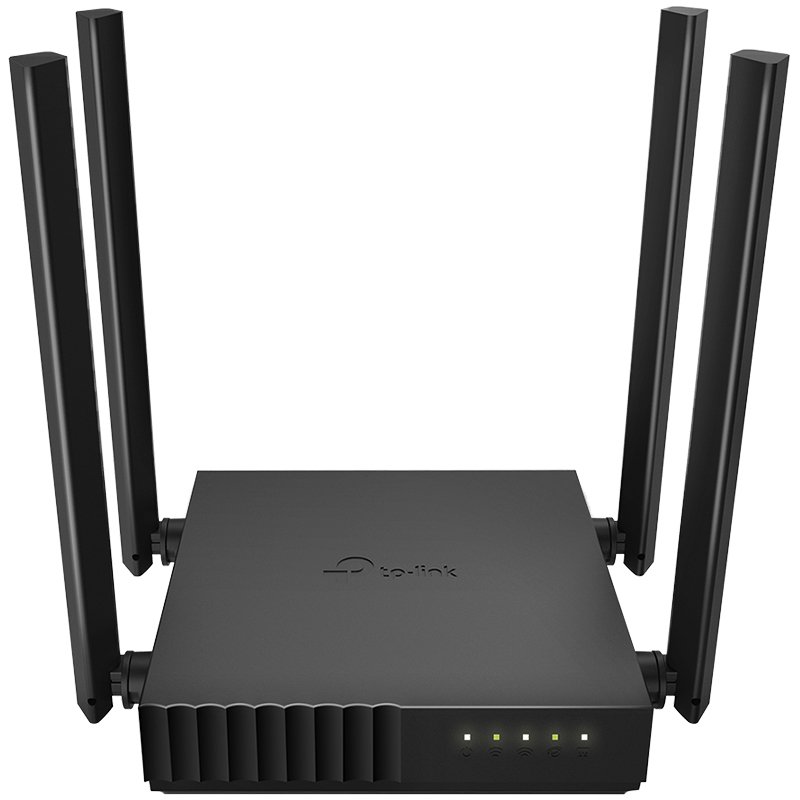

* Wi-Fi Router Archer C54
* Power Adapter
* RJ45 Ethernet Cable
* Quick Installation Guide
