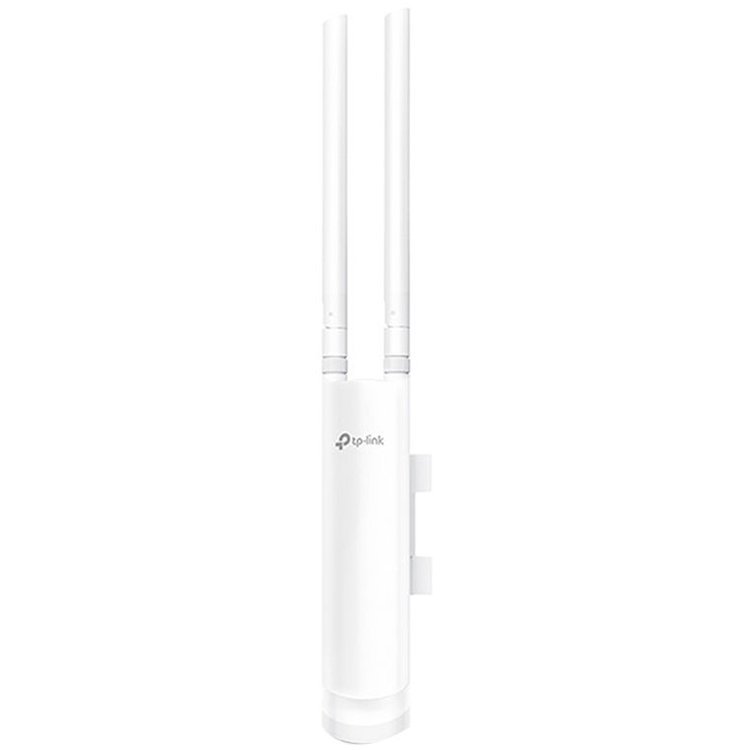

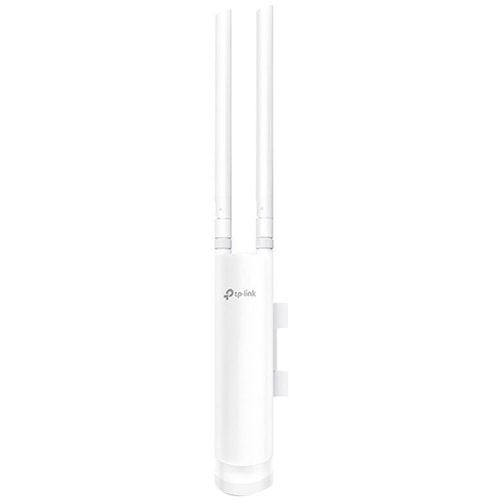

Jamstvo : 5 godina , – Durable, weatherproof enclosure for outdoor Wi-Fi applications
– Up to 1200Mbps with 2×2 MIMO technology
– Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
– Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
– High transmission power and high gain antennas provide a long-range coverage area
– Cloud centralized management and Omada app for ultra convenience and easy management
– Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
– 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation
Specifications
HARDWARE FEATURES
– Interface: Gigabit Ethernet (RJ-45)Port ×1 (Support 802.3af PoE and Passive PoE)
– Button: Reset
– Power Supply:
* 802.3af/A PoE
* 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
– Power Consumption: 10.5W
– Dimensions (W×D×H):
* 215.7×45×37.7 mm (without antenna & mounting kit)
* 403.8×90.7×55.2 mm (with antenna & mounting kit)
– Antenna: 2.4GHz: 2× 3dBi, 5GHz: 2× 4dBi
– Weatherproof Enclosure: IP65
– Mounting: Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
– Wireless Standards: IEEE 802.11a/b/g/n/ac
– Frequency: 2.4GHz, 5GHz
– Signal Rate:
* 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
* 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
* 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
* 802.11b: 1, 5.5, 11Mbps
* 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
– Wireless Functions:
* Multiple SSIDs(Up to 16 SSIDs, 8 for each band)
* Enable/Disable Wireless Radio
* Automatic Channel Assignment
* Transmit Power Control (Adjust Transmit Power on dBm)
* QoS(WMM)
* MU-MIMO
* Airtime Fairness
* Beamforming
* Band Steering
* Load Balance
* Rate Limit
* Reboot Schedule
* Wireless Schedule
* Wireless Statistics based on SSID/AP/Client
– Wireless Security:
* Captive Portal Authentication
* Access Control
* Wireless Mac Address Filtering
* Wireless Isolation Between Clients
* SSID to VLAN Mapping
* Rogue AP Detection
* 802.1X Support
– Transmission Power:
* CE: <20dBm (2.4GHz,EIRP), <25dBm (5GHz,EIRP)
* FCC: <23dBm (2.4GHz), <22dBm (5GHz)
MANAGEMENT
- Omada App: Yes
- Omada Cloud Controller: Yes
- Omada Controller Software: Yes
- Cloud Access: Yes
- Email Alerts: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c
- System Logging Local/Remote Syslog: Yes
- SSH: Yes
- Web-based Management: Yes
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
OTHERS
- Certification: CE?FCC?RoHS
- Package Contents: Access Point EAP225-Outdoor, Passive PoE Adapter, Power Cord, Mounting Kits, Installation Guide, Waterproof Ruber Insert,
Waterproof Antenna
- Environment:
* Operating Temperature: -40C - 70C (-40F - 158F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 5% - 90% non-condensing
* Storage Humidity: 5% - 90% non-condensing
